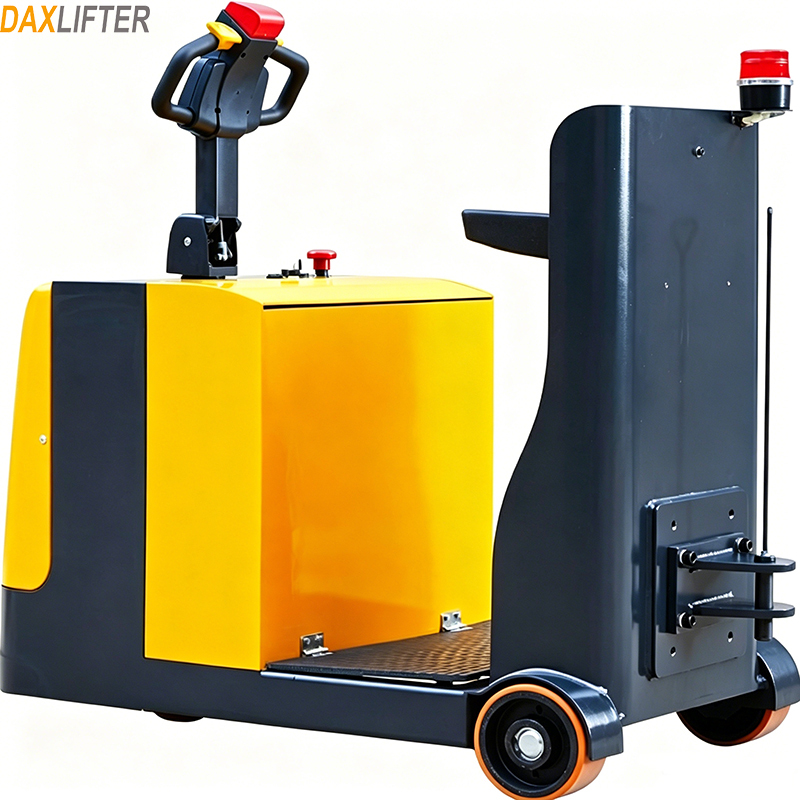

The DAXLIFTER seated type electric tow tractor is heavy-duty battery-powered industrial towing equipment with model QD, two configurations CY50 and CY60, providing traction weight range from 5000kg to 6000kg. It adopts seated operation layout and full electric drive with zero exhaust emission, perfectly designed for heavy cargo transfer inside factories, logistics warehouses and airport cargo terminals.
This tractor owns compact overall dimension: overall length L=1880mm, overall width b=980mm, overall height H2=1330mm, rear overhang X'=1125mm, minimum ground clearance m1=90mm, and minimum turning radius Wa=2100mm, which allows flexible turning and passing through narrow aisles. It is equipped with a 4.0KW drive motor, powered by standard 400Ah/48V storage battery. The battery weight is 670kg, while the tractor net weight without battery reaches 600kg.
The tractor can work with matched QD-G flat trolley to transport bulk pallets, boxes and industrial components at one time. The QD-G flat trolley has a loading capacity of 2000Kg with dimension 2400 × 1200 mm, greatly improving material handling efficiency of workshops and warehouses. This vehicle is fitted with American CURTIS controller system, hydraulic brake system, intelligent charger and German REMA charging plug, with optional 385AH large capacity traction battery for longer continuous working time.
Equipped with top quality controller system imported from America CURTIS brand, the tractor delivers high reliability and stable performance under all working states. Matched with 4.0KW drive motor and standard 400Ah/48V battery (optional 385AH battery), the control system balances power output perfectly for CY50 (5000kg traction load) and CY60 (6000kg traction load), avoiding power lag or overload shutdown under different loads and road conditions.
High-strength vehicle frame structure adapts to high-intensity tough workplaces and extends whole service life. With overall size 1880×980×1330mm, 90mm minimum ground clearance and 1125mm rear overhang, the chassis can avoid scratches from ground protrusions, rails and sundries. The 600kg empty weight plus 670kg battery weight provides enough counterweight, preventing floating or tilting when towing 5000-6000kg heavy goods.
Standard hydraulic brake unit brings reliable & safe braking effect, flexible steering control and steady starting without jitter. The minimum turning radius is only 2100mm, matching humanized seated steering wheel design. Operators can easily finish turning, reversing and towing tasks in narrow warehouse channels or compact production line aisles, balancing safety and usability.
The tractor is configured with 400Ah/48V large capacity storage battery (battery weight 670kg), and 385AH battery is available as alternative for longer endurance. Supporting intelligent charger and Germany REMA charging plug, the charging operation is simple and convenient without complex wiring, supporting all-day non-stop material transportation after quick power supplement.
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Product Model | Model | - | QD |
| Config-code | Config-code | - | CY50/CY60 |
| Drive Unit | Drive Unit | - | Electric |
| Operation type | Operation type | - | Seated |
| Traction weight | Traction weight | kg | 5000-6000 |
| Item | Symbol | Unit | Value |
|---|---|---|---|
| Overall length | L | mm | 1880 |
| Overall width | b | mm | 980 |
| Overall height | H2 | mm | 1330 |
| Rear overhang | X' | mm | 1125 |
| Minimum ground clearance | m1 | mm | 90 |
| Turning radius | Wa | mm | 2100 |
| Item | Unit | Value |
|---|---|---|
| Drive motor power | KW | 4.0 |
| Battery | Ah/V | 400/48 |
| Item | Unit | Value |
|---|---|---|
| Weight w/o battery | kg | 600 |
| Battery weight | kg | 670 |
QD-G flat trolley is exclusive supporting trailer for DAXLIFTER QD seated electric tow tractor, which can be connected to the rear traction hook without extra modification.
Equipped with safety guardrail, the trolley can stably hold cartons, hardware parts, plastic pallets and material bins. Combined with the tractor’s 5000-6000kg traction capacity, multiple trolleys can be pulled at once to cut down transfer trips and improve turnover efficiency for raw materials, finished goods and semi-finished products.
DAXLIFTER QD seated electric tow tractor integrates powerful traction, compact size, long endurance and safe operation. The 4.0KW drive motor with 400Ah/48V battery stably pulls 5000-6000kg loads. Compact dimension 1880×980×1330mm and 2100mm minimum turning radius adapt to all kinds of narrow indoor working spaces. The matching weight design (600kg empty body + 670kg battery) prevents slipping and tilting under heavy load.
Three core imported components – American CURTIS controller, German REMA charging plug and hydraulic brake system reduce equipment failure rate and extend whole machine service life. Optional QD-G flat trolley with 2000Kg load capacity expands transport ability, making this model cost-effective electric towing equipment for heavy material handling inside factories, warehouses and airports.
