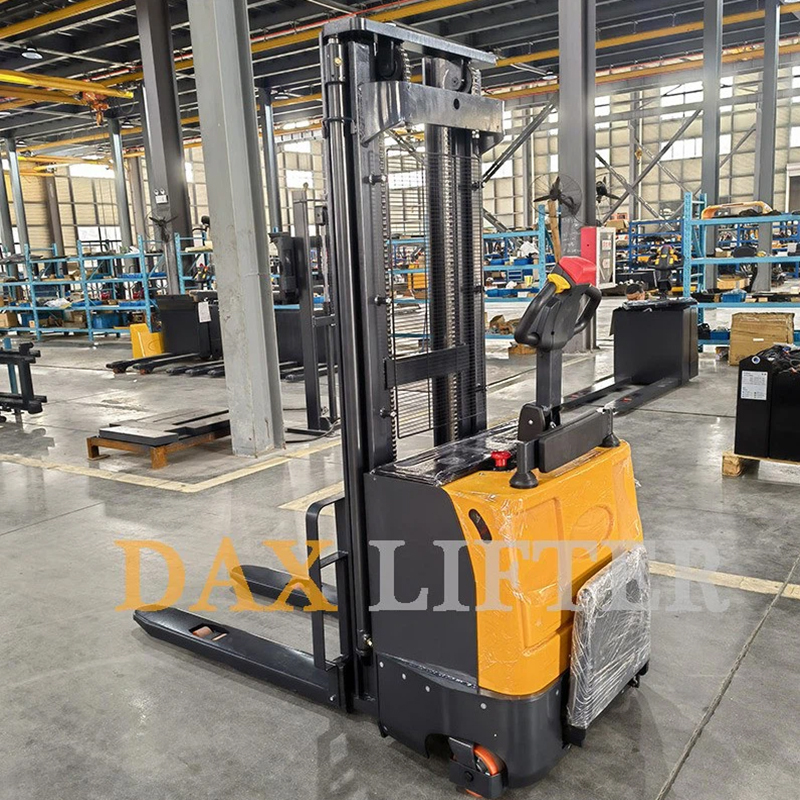

DAXLIFTER CDD-20 pedestrian & standing type electric pallet stacker is a battery-driven warehouse stacking equipment with optional load capacity of 1500kg and 2000kg, load center 600mm, overall dimension 1925mm(L)*940mm(W). This electric stacker supplies multiple lifting heights from 2500mm up to 3500mm, corresponding max working height from 3144mm to 4144mm. It supports two configuration codes: B15/B20 without pedal and handrail, BT15/BT20 equipped with pedal and handrail. Equipped with 1.6KW AC drive motor, 2.0/3.0KW lift motor, matched with 240Ah/24V storage battery, the machine features 90mm lowered fork height, adjustable max fork width 540mm or 680mm, turning radius 1560mm and fork size 1150×160×56mm. The machine weight without battery ranges from 875kg to 932kg according to different mast heights, while the battery weight keeps 235kg constantly.
This walk-behind electric stacker serves as space-saving pallet lifting equipment suitable for indoor warehouses, logistics centers, supermarkets and production workshops. Compact body and 1560mm small turning radius allow flexible operation within narrow warehouse aisles. Two operation modes, pedestrian walking behind and standing riding, satisfy different working intensity demands. The heavy-duty integrated mast ensures stable cargo lifting during high-level stacking. The emergency stop button on the control handle greatly improves operational safety for daily pallet stacking, loading and goods storage work.
Indoor warehouse storage, goods stacking on racks, factory workshop material transportation, logistics distribution center pallet handling, retail stock arrangement, cold storage non-pollution cargo lifting and other indoor material handling tasks. Zero emission electric design fits closed indoor working environment.
| Item | Unit | Parameter |
|---|---|---|
| Model | - | CDD-20 |
| Config-code | - | B15/B20 (W/O pedal & handrail) |
| BT15/BT20 (With pedal & handrail) | ||
| Drive Unit | - | Electric |
| Operation Type | - | Pedestrian/Standing |
| Load capacity (Q) | Kg | 1500/2000 |
| Load center (C) | mm | 600 |
| Overall Length (L) | mm | 1925 |
| Overall Width (b) | mm | 940 |
| Overall Height (H2) | mm | 1825 / 2025 / 2125 / 2225 / 2325 |
| Lift height (H) | mm | 2500 / 2900 / 3100 / 3300 / 3500 |
| Max working height (H1) | mm | 3144 / 3544 / 3744 / 3944 / 4144 |
| Fork dimension (L1*b2*m) | mm | 1150×160×56 |
| Lowered fork height (h) | mm | 90 |
| Max Fork Width (b1) | mm | 540/680 |
| Turning radius (Wa) | mm | 1560 |
| Drive Motor Power | KW | 1.6AC |
| Lift Motor Power | KW | 2.0/3.0 |
| Battery | Ah/V | 240/24 |
| Weight w/o battery | Kg | 875 / 897 / 910 / 919 / 932 |
| Battery weight | kg | 235 |
We support customized fork width, mast height and OEM brand marking. All DAXLIFTER electric stackers pass strict factory testing before shipment. Contact our sales team to get latest quotation and delivery schedule.
