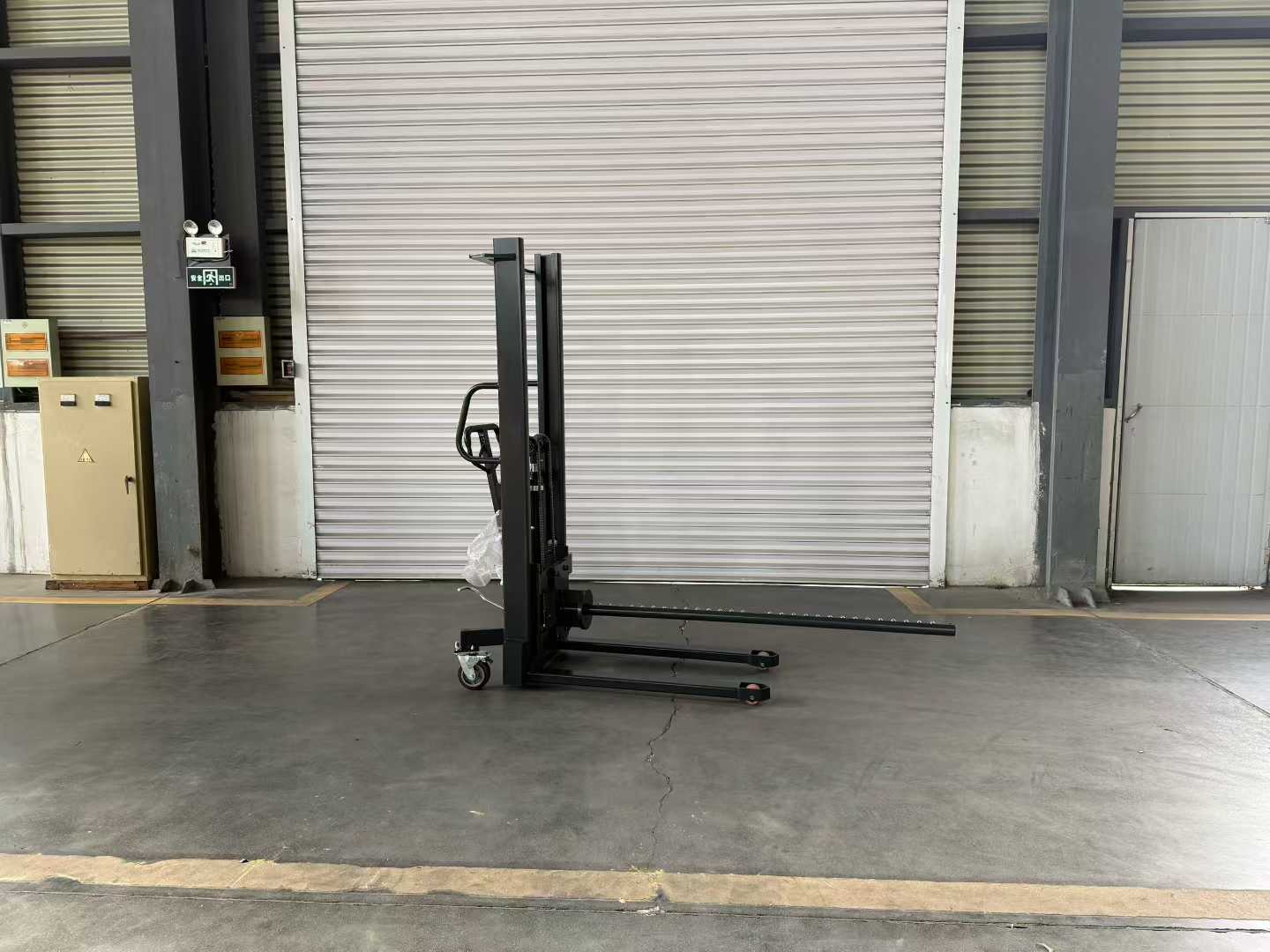

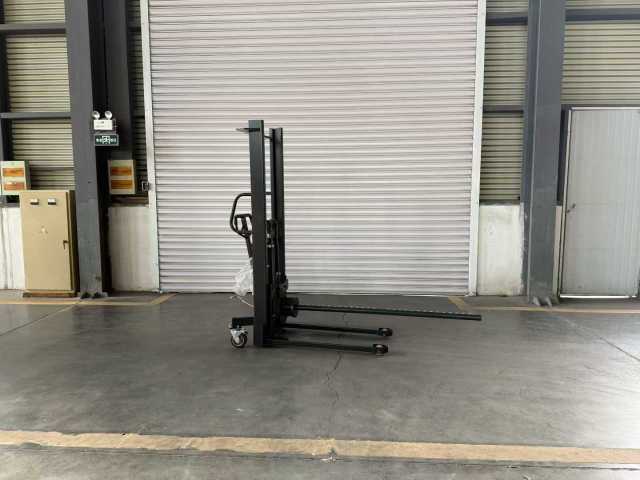

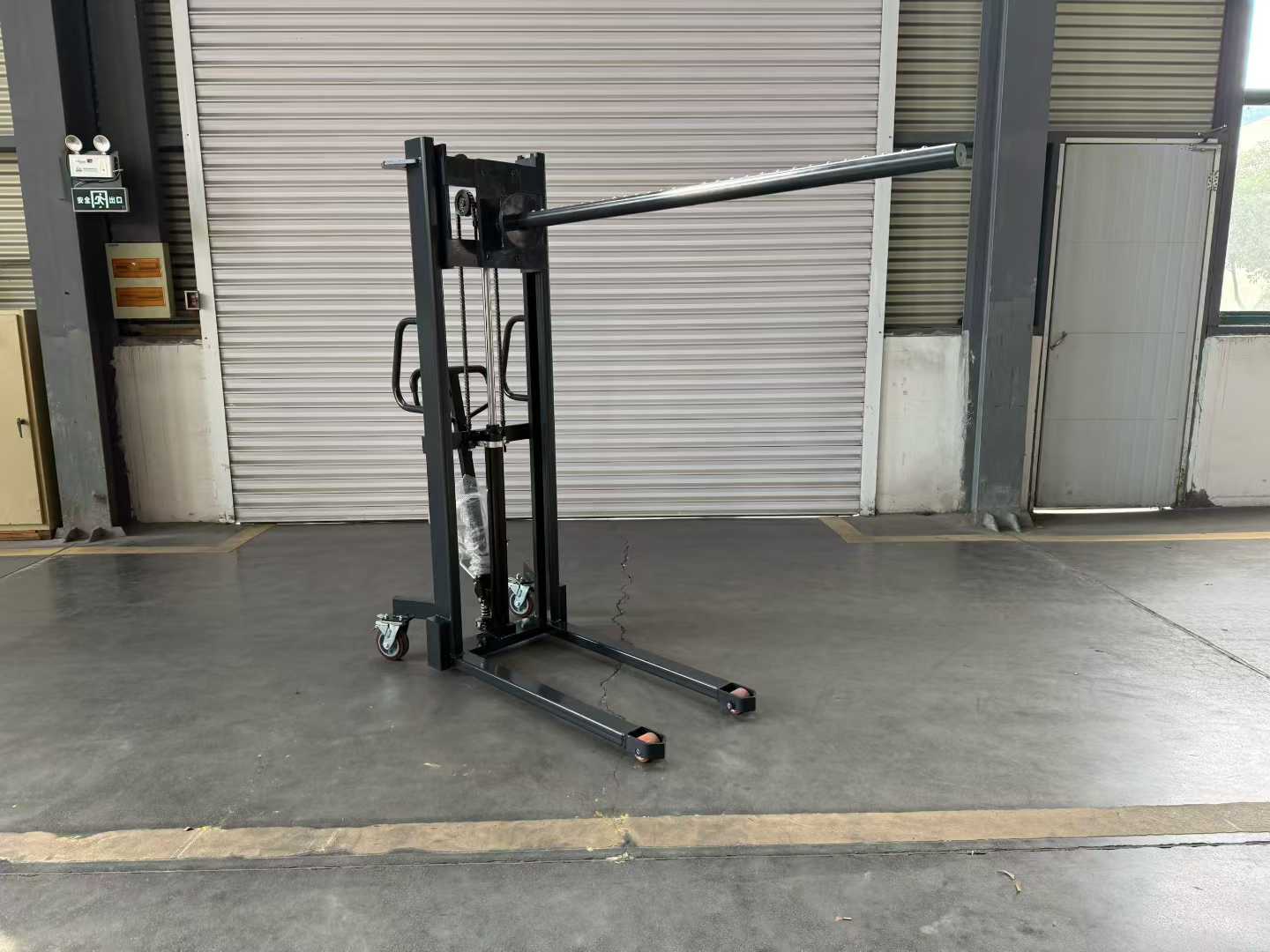

Bullseye Rod Threading Trolley - DXBT-28
Multi-Directional Agility for Industrial Rod Handling
In the specialized world of metalworking and industrial rod handling, traditional trolleys often fall short when it comes to precise positioning and multi-directional movement. The DAXLIFTER Bullseye Rod Threading Trolley, Model DXBT-28, is meticulously designed to fill this gap. Featuring an array of high-load industrial "bullseye" bearings—also known as ball transfer units—this trolley allows for effortless rotation and lateral movement of heavy rods and pipes. This is particularly advantageous in assembly lines where rods need to be threaded through stationary machinery or precisely aligned for welding and fabrication.
Designed for heavy-duty use in non-electric environments, the DXBT-28 eliminates the need for complex automation while providing a level of maneuverability that matches motorized alternatives. The frame is constructed from reinforced box-section steel, providing the structural integrity required to support loads up to 300kg without deformation. The spacing and orientation of the ball transfer units are optimized to support various rod diameters, ensuring stability during the threading process. This tool is an essential asset for workshops aiming to increase throughput while maintaining the highest safety standards for their operators.
Engineered Features
Technical Specifications
| Specification Parameter | Measured Detail |
|---|---|
| Model Identifier | DXBT-28 |
| Maximum Load Capacity | 300 kg |
| Bearing Type | Industrial Bullseye (Ball Transfer Units) |
| Frame Material | Reinforced Structural Steel |
| Finish | Industrial Powder Coating (Orange/Grey) |
| Wheel Type | Solid Rubber with Steel Hubs |
| Deck Height | 450 mm |
| Maneuverability | 360-Degree Multi-Directional |
