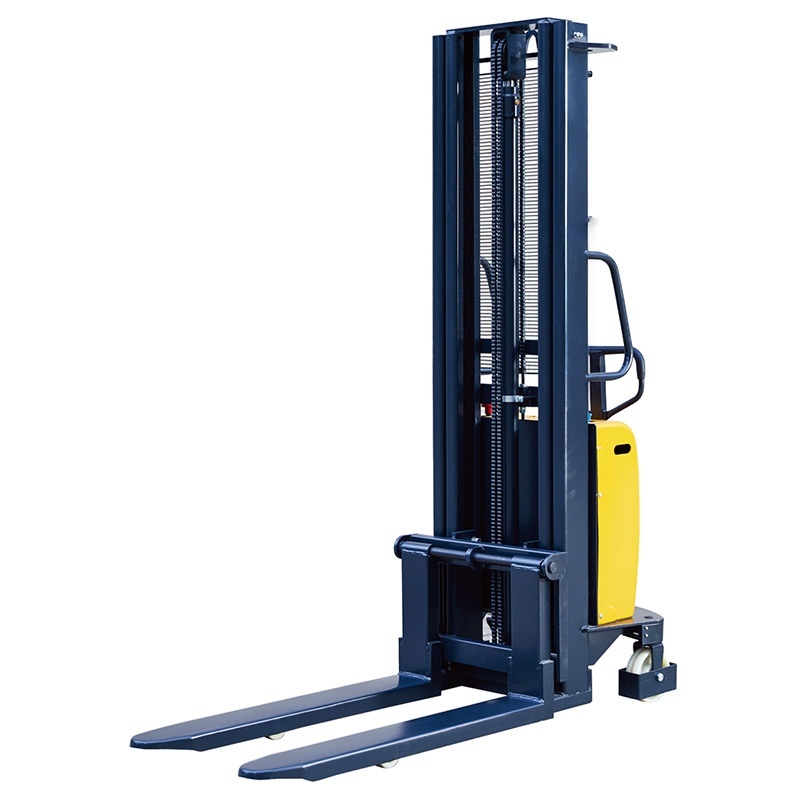

Designed for reliability and cost-effectiveness, the CDSD20 series combines manual transport with electric lifting. It is the ideal solution for small to medium-sized warehouses requiring frequent vertical stacking of heavy loads.
GET FACTORY PRICE| Model | CDSD20 (F10/F15) |
|---|---|
| Drive Type | Semi-electric (Manual Push/Electric Lift) |
| Load Capacity | 1000 kg / 1500 kg |
| Maximum Lift Height | 1600 mm - 3500 mm |
| Load Center | 600 mm |
| Overall Length | 1880 mm |
| Turning Radius | 1485 mm |
| Lift Motor Power | 1.5 kW |
| Battery Capacity | 120Ah / 12V |
| Mast Type | High-strength "C" Shaped Steel |
