High-Reach Mobility for Dynamic Work Environments

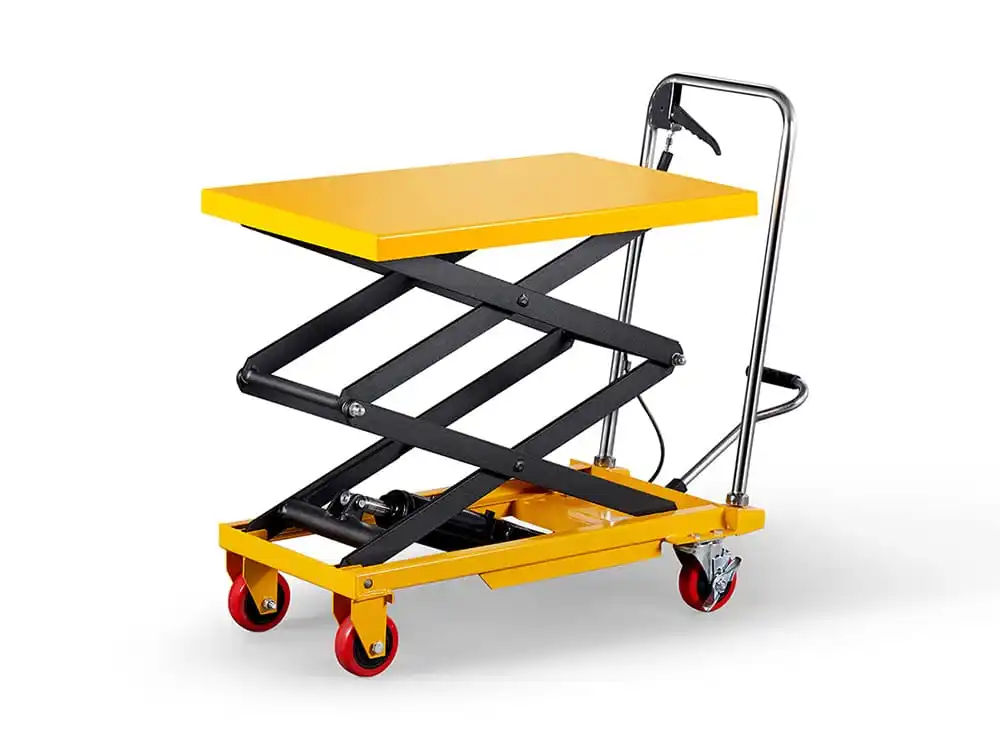

When you need the flexibility of a mobile cart combined with the reach of a double scissor mechanism, the movable scissor lift table from DAXLIFTER (TFD Series) is the ideal choice. The dual-shear design allows for significantly higher platform heights compared to standard single-scissor models, without increasing the overall footprint of the machine.
Engineered for Stability: High-reach mobile equipment requires precise engineering. At DAXLIFTER, our TFD series is built with a widened base and heavy-duty casters to ensure maximum stability even when the platform is fully extended.
Performance & Precision
Our movable lifts are widely used in maintenance operations, tool rooms, and high-shelf picking areas. The integrated brake system on the rear casters ensures the lift remains stationary while work is performed, meeting all industrial safety requirements.
Technical Specifications
| Model | Payload (kg) | Platform Size (mm) | Min Height (mm) | Max Height (mm) | Weight (kg) |
|---|---|---|---|---|---|
| TFD15 | 150 | 700*450 | 270 | 1260 | 51 |
| TFD35 | 350 | 905*500 | 350 | 1500 | 99 |
| TFD80 | 800 | 1200*600 | 500 | 1500 | 165 |
